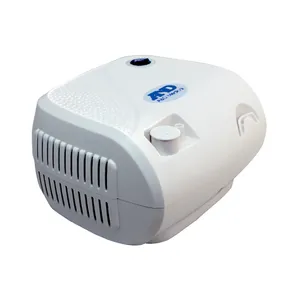

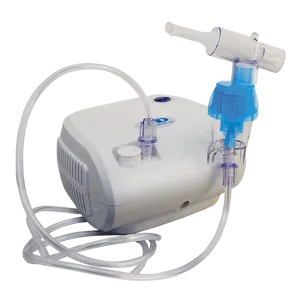

A&D Medical UN-014 Compact Nebuliser

The A&D Medical UN-014 Compact Nebuliser combines portability with performance, ensuring you can manage your respiratory health with ease and discretion. Its low noise operation (55dB) allows for a very quiet and comfortable treatment experience, perfect for use at any time without causing disturbance. With its small footprint and light design, it's also incredibly convenient for storage and travel.

Key Features & Benefits for Everyday Respiratory Management

• Efficient Medication Delivery: Engineered with a high respirable fraction and optimal particle size (MMAD), ensuring effective drug delivery to the furthest parts of your lungs.
• User-Friendly Design: Requires no breath co-ordination, making it simple for users of all ages, including children, with minimal training needed.
• Safety & Hygiene: Features a simple design with fewer small parts to lose or swallow, and is made from easy-to-clean, biocompatible Polypropylene (PP) material that meets hygienic standards (can be boiled and/or autoclaved).
• Versatile Use: Specifically designed to aid in the treatment of asthma, allergies, and other respiratory disorders, providing targeted relief for conditions like coughs and congestion.
• Easy Maintenance: Consumables like tubing, filters, and mouthpieces are easily replaceable, ensuring long-term, reliable use.
• Complete Kit: Designed for use with A&D’s range of mouthpieces, including adult and child sizes, offering adaptable treatment for the whole family.

The A&D UN-014 is not just easy to use; it's also straightforward to maintain, ensuring a hygienic and reliable device for your daily respiratory needs. Its thoughtful construction means fewer parts to clean, making your health routine simpler and more effective.

Operating Instructions

1. Place the compressor on a stable, sturdy, and flat surface where it can be easily reached when seated.

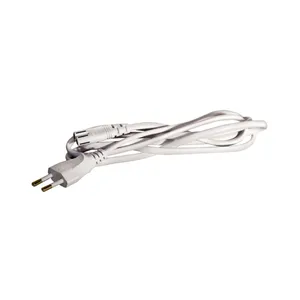

2. Pull out the power cord and ensure the device is in the "Off" (O) position by pressing the left side of the switch.
3. Plug the power cord into a wall outlet.

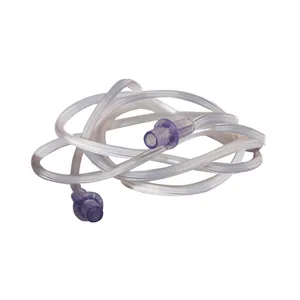

4. Connect one end of the nebuliser tubing into the air outlet connector on the device.

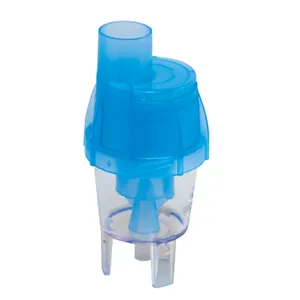

5. Add the prescribed solution into the nebuliser cup through its opening, using an eye dropper or pre-measured dose container. Do not exceed the 6ml maximum fill level marked on the cup.

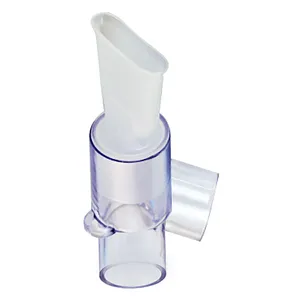

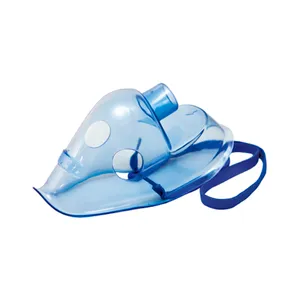

6. Assemble the mouthpiece and insert it into the top of the nebuliser cup. If using an aerosol mask, connect the bottom of the mask to the top of the nebuliser cup.
7. Connect the free end of the tube to the nebuliser air inlet connector.
8. Turn the power on to start the unit.
9. Initiate treatment by placing the mouthpiece between your teeth and inhaling and exhaling through it.
10. If using an aerosol mask, place the mask over your mouth and nose.

Cleaning Instructions

1. Turn off the power and unplug the nebuliser from the wall outlet.
2. Remove the tube from the air inlet.
3. To Clean: Disassemble the mouthpiece, nebuliser cup, chamber, and baffle. Wash these components in hot water with dish-washing detergent. Rinse thoroughly to remove all detergent and allow to air dry.
4. To Disinfect: Mix one part white vinegar with three parts hot water in a clean container. Submerge the mouthpiece, nebuliser cup, chamber, and baffle in this solution for half an hour. Remove from the solution and let air dry.
5. The air tube does not require cleaning. Wipe the external surfaces of the unit regularly if necessary.

Note on Replacement: It is recommended to replace nebuliser accessories (masks, mouthpiece, nebuliser cup, air tube) after 6 months of use, and the air filter every 30 days or when it turns grey.
